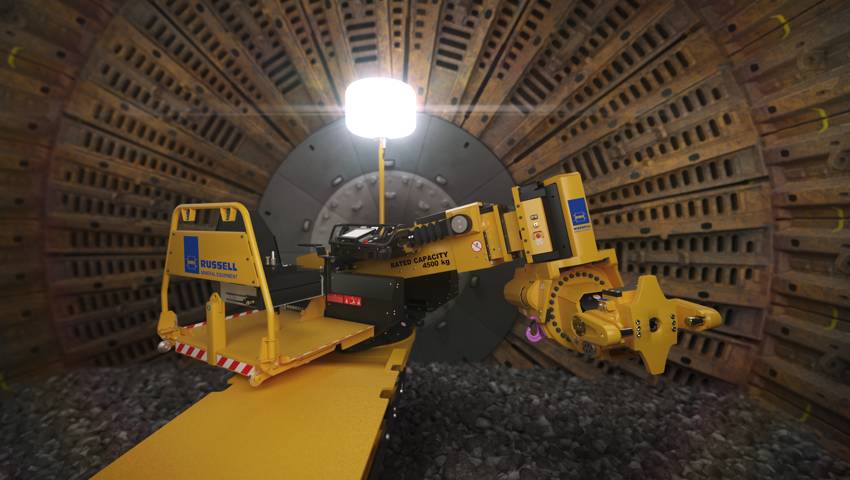

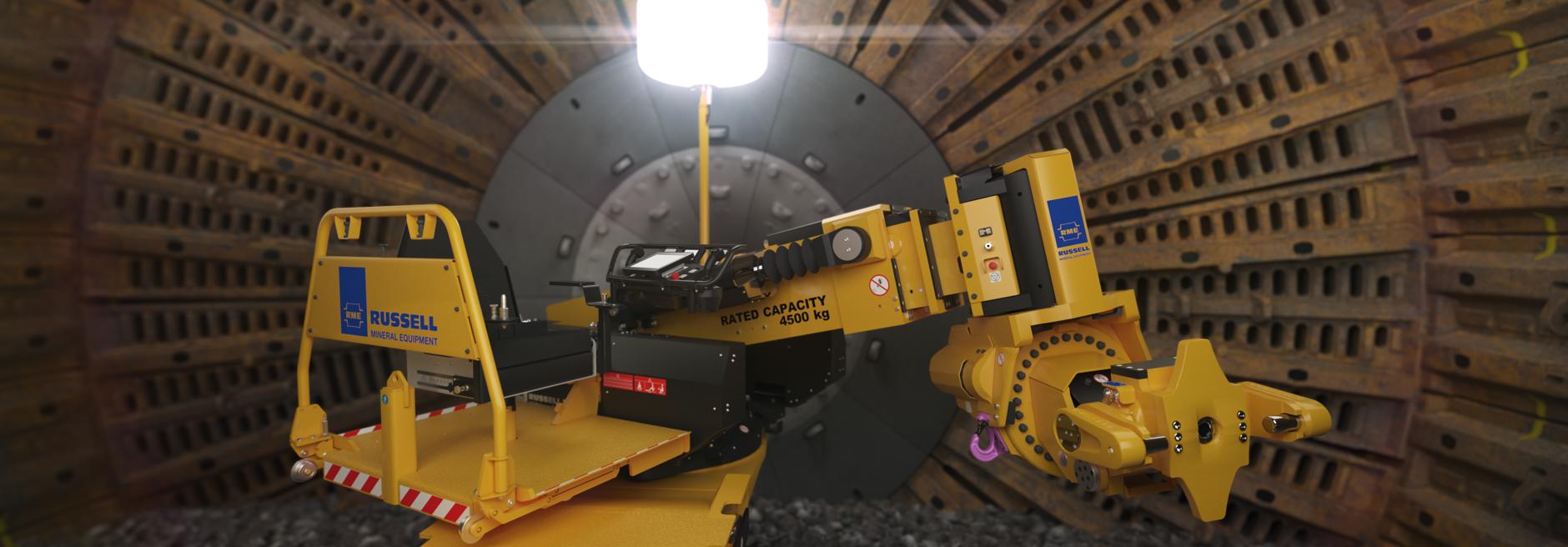

RUSSELL 7 Model S Mill Relining Machine

As the centrepiece of the RME Mill Relining System, the RUSSELL 7 Model S Mill Relining Machine has earned the reputation of being the industry’s most trusted workhorse performer globally.

Preferred by operators, RME’s signature machine can always be counted on to deliver unrivalled productivity and safety, even in the most challenging of reline conditions.

The RUSSELL 7 Model S is our quality base machine. It is available in 2500 kg to 9000 kg capacities and field upgradable with a range of accessories and automation capabilities. This legendary reliability with future-proofing will be a remarkable advantage for improving mill availability and reline crew safety.

Benefits

Most trusted, widely-used mill relining machine in the mineral processing industry
Encompasses three decades of engineering experience and industry-best safety
Precision engineered to achieve fast liner exchange and short shutdowns – always
Up-grade path for eliminating risk and relining from outside of the mill
Withstands harsh concentrator environments to perform reliably reline after reline
Better for the balance sheet because it higher performing and built to last
Lower total cost of ownership due to longer asset lifecycles
Field-proven to excel at relining in a wide range of grinding mill environments

Contact an agent

Download spec sheet

ADDITIONAL INFORMATION

: Safer hydraulics and electrical safety

Guards and rail enable safe working at-height

Portable remote-control harness to operate the MRM from safer vantages outside the mill

Tie-downs with fail-safe interlock to anchor your MRM securely ready for heavy-duty lifting

All flat work platform and beam to enter, traverse and exit the mill safely

New coating technology offers better protection in harsh conditions

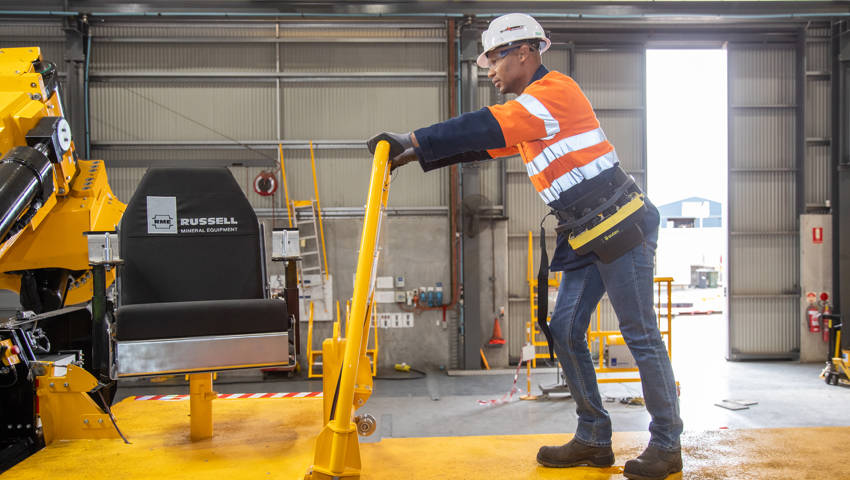

No-lift slide-in operator station eliminates manual lifting

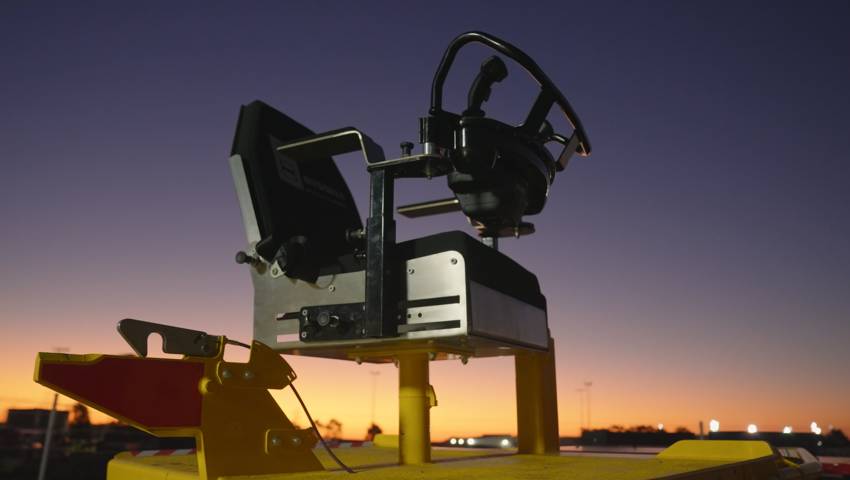

New ergonomic chair for optimum comfort during long shifts

Heavy-duty telescopic boom to reach all mill working heights and extreme angles for high productivity

Industry-best safety technology – eStops, base drive enable systems, LED work and emergency lighting, boom lift limiting, grapple release safety and more
: Ideal for all mine sites and mill applications large, medium and small, especially those seeking to optimise their mill relining operations through automation technology in the future.

RME is the world’s leading Original Equipment Manufacturer (OEM) of mill relining systems.

550+

RUSSELL MRMs engineered, manufactured and delivered.

1100+

THUNDERBOLT Recoiless Hammers sold.

440+

Mine sites served by RME equipment & services.

“The industry’s most trusted and widely used RUSSELL 7 Model S is our quality base machine. It is available in 2500 kg to 9000 kg capacities and, from 2024 and on, will be field-upgradable with automation and a wide-range of accessories. RME's legendary reliability with future-proofing is going to be a remarkable advantage for improving mill availability and reline crew safety.”

Tarnya McBurney

Product Manager – RUSSELL Mill Relining Placement Machines & RUSSELL Feed Chute Transporters, RUSSELL MINERAL EQUIPMENT

Read our 'Best Practice Mill Liner Handler Care and Maintenance eBook'

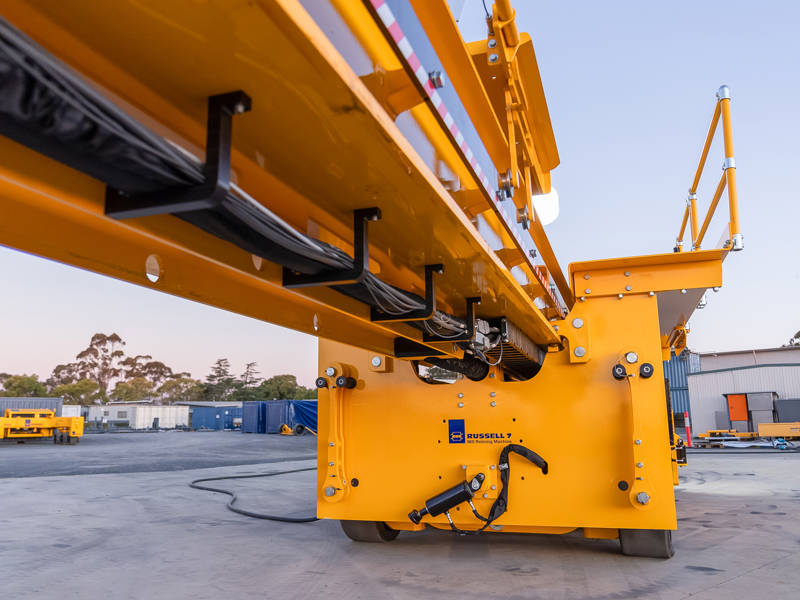

RUSSELL 7 Mill Relining Machine Safety Tie Down Interface

RUSSELL 7 COMPARISON

	RUSSELL 7 R MRM	RUSSELL 7 S+ MRM	RUSSELL 7 S MRM	RUSSELL 3/7-E MLH/MRM
CAPACITY (KG)	4500 – 9000	4500 – 9000	2500 – 9000	1500
AXIS OF MOVEMENT (#)	7	7	7	3/7
AUTOMOTION (Robotic Operating System)	Fully-operational	Hardware-equipped	Upgrade-ready	No
LINER VISUAL DETECTION CAMERA	Fully-operational	Hardware-equipped	Upgrade-ready	No
MOTOR	Dual WEG W22	Dual WEG W22	Single WEG W22	Single WEG W22
AUTOMATED PARK / DEPLOY	Fully-operational	Fully-operational	Upgrade-ready	No
GRAPPLE OPTIONS	All Reach Standard	HKS / Cylinder	All Reach / HKS / Cylinder / Small Entry	HKS / Cylinder
TIE-DOWN SAFETY INTERLOCK	Standard	Standard	Standard	No
